Hercules 80
Femtosecond Solid-State Laser

   Pulse Duration <600fs

   Average power 30W-80W

   Pulse Energy 30μJ-500μJ

   Wavelength 1030nm/515nm/343nm

The Hercules 80 series ultrafast lasers deliver outstanding performance tailored to both scientific research and industral applicationsThese lasers are available at three key wavelengths 1030 nm, 515 mm. and 343 nmoerine fexibility to meet the demands of various fields, from precision microfabrication to advanced spectroscopy.

Combining high average power output of up to 80 W with an exceptionally wide repetition rate range from 1 Hz to 2 MHz, the Herculesseries ensures both throughput and operational versatility. With pulse durations under 600 femtoseconds, users benefit from enhanced temporal resolution and precision in time-sensitive processes The laser beam maintains a high-quality TEMo mode with over 90% beam circulanity, providing uniform, stable output that improvesboth experimental reliability and processing results. For applications requiing more complex control, burst mode operation is supported,enabling advanced modulation of pulse trains.

Designed with a compact footprint and integrated water-cooling, the Hercules lasers offer themmal stability and long-temm operationalreliability under high power. ultiple trigger options and linear external power control allow for seamless integration into existingsysteins and precise control over laser output

Altogether, the fercules series stands out as a robust and etlicrent utratast laser platform-otering the pertect balance of powerprecision, and adaptability.

Product Model Hercules-1030-50 Hercules-1030-80 Hercules-515-30 Hercules-515-80 Hercules-343-30
Center Wavelength 1030±5 nm 1030±5 nm 515±3 nm 515±3 nm 343±1 nm
Power 50 W@200 kHz 80 W@200 kHz 30 W@200 kHz 80 W@200 kHz 30 W@1 MHz
Repetition Rate 1 Hz~2 MHz 1 Hz~2 MHz 1 Hz~2 MHz 1 Hz~2 MHz 1 Hz~2 MHz
Pulse Energy 250 μJ 400 μJ 150 μJ 400 μJ 30 μJ
Power Stability <1.0%(8 hours, RMS) <1.0%(8 hours, RMS) <1.5%(8 hours, RMS) <1.5%(8 hours, RMS) <2.0%(8 hours, RMS)

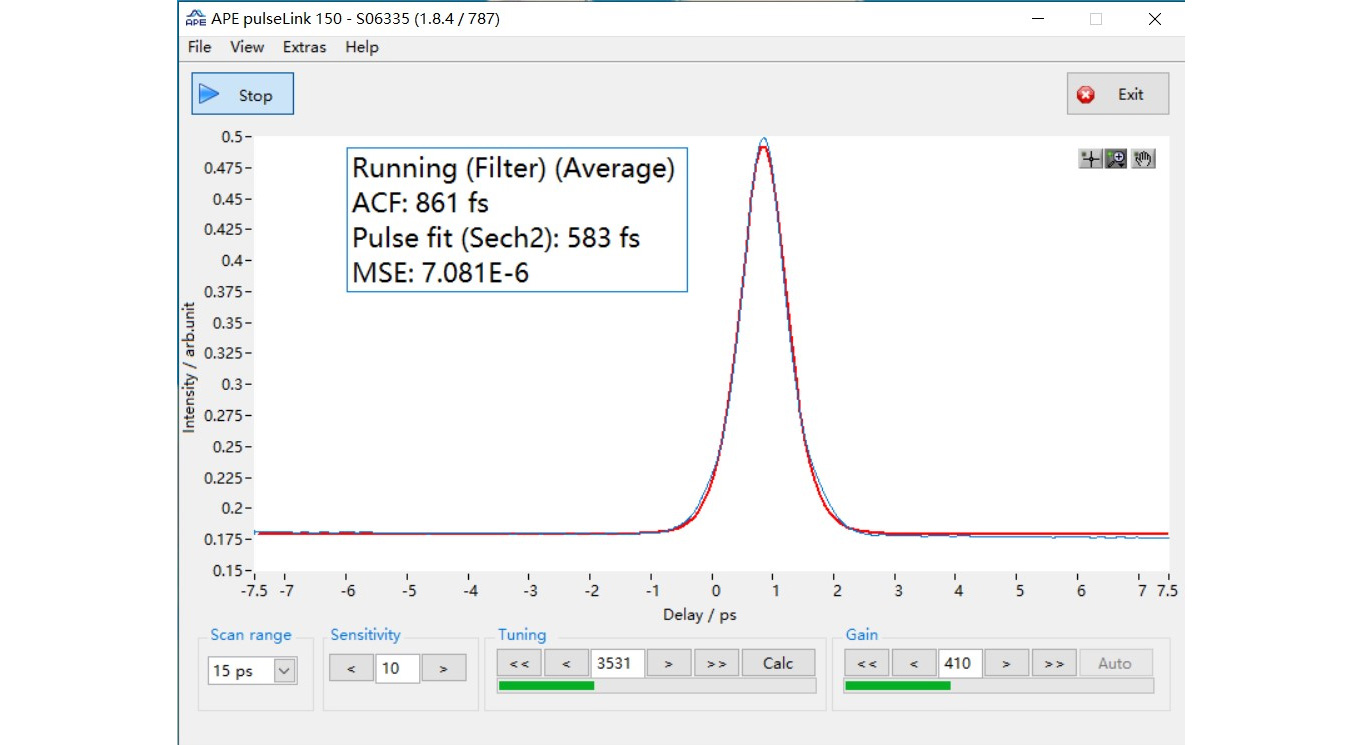

Pulse Duration <600 fs <600 fs <500 fs <550 fs <500 fs

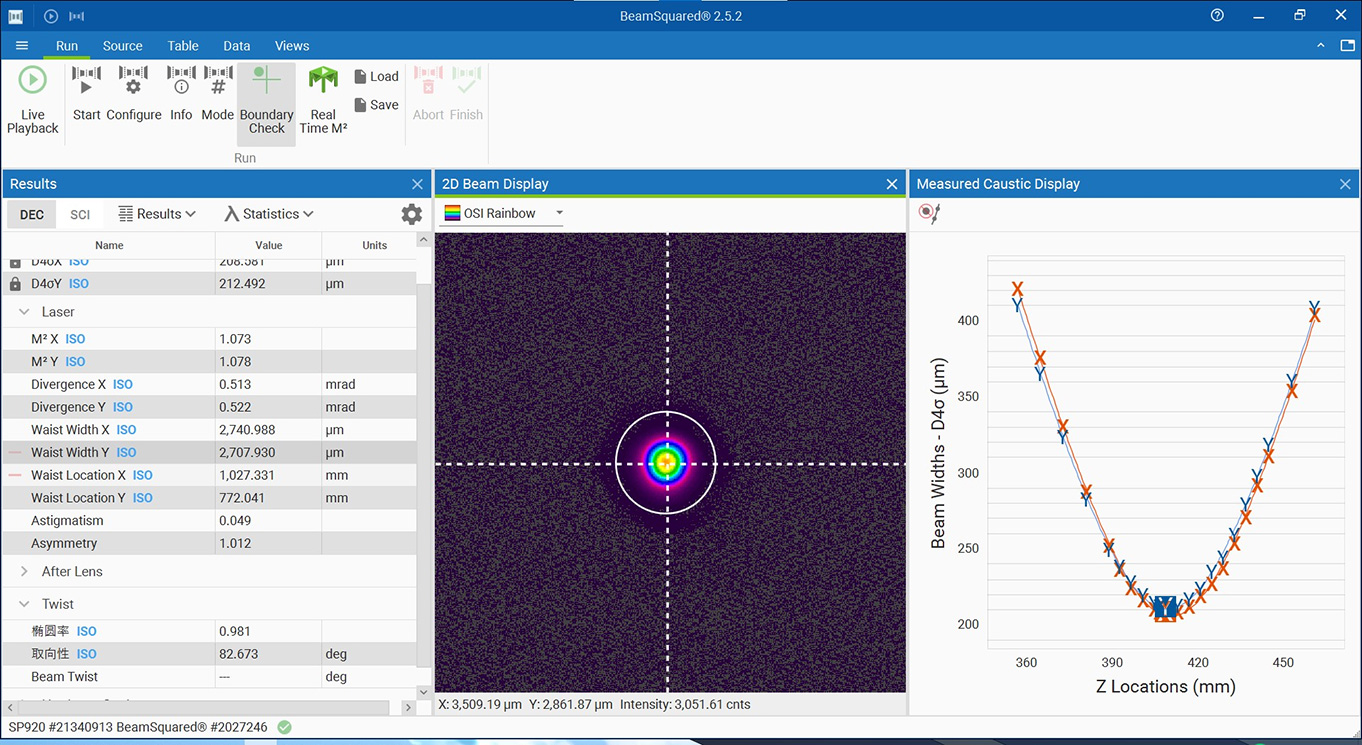

Beam Quality TEM₀₀ M²≤1.3 TEM₀₀ M²≤1.3 TEM₀₀ M²≤1.3 TEM₀₀ M²≤1.3 TEM₀₀ M²≤1.3
Beam Circularity >90% >90% >90% >90% >85%
Beam Diameter 2.5±0.5 mm 2.5±0.5 mm 2.0±0.5 mm 2.5±0.5 mm 2.5±0.5 mm
Burst Mode 1~10 1~10 1~3 1~3 1

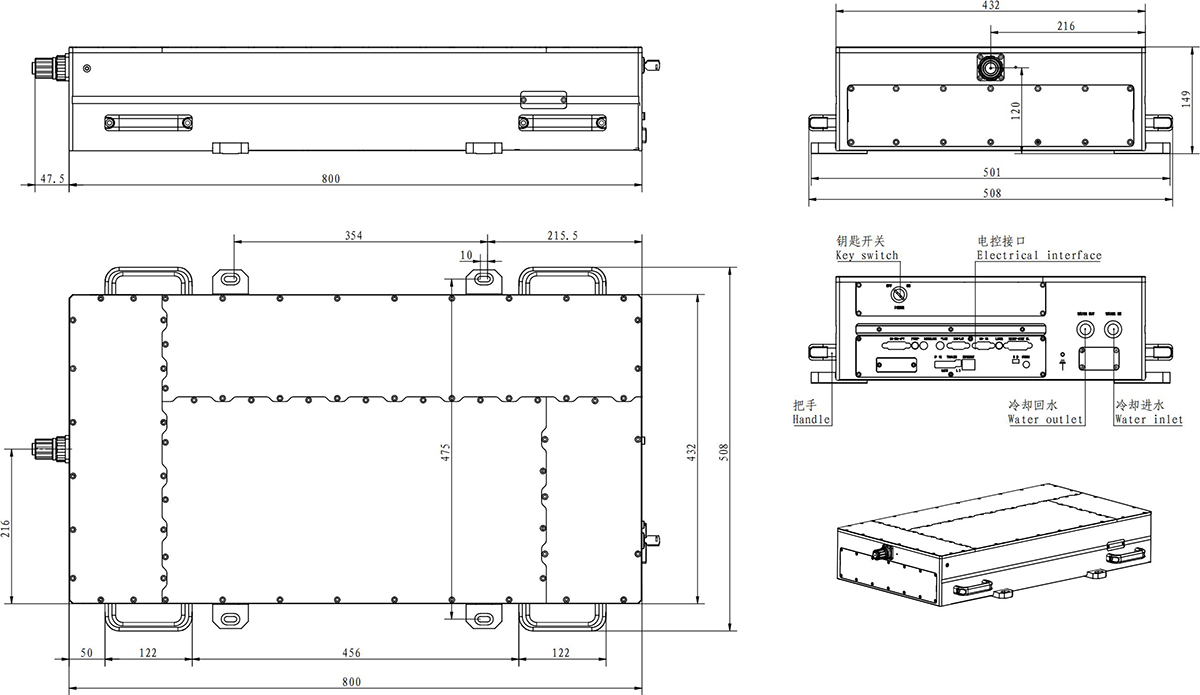

Dimensions 800*432*149 mm3 800*432*149 mm3 800*432*149 mm3 800*432*149 mm3 800*432*149 mm3
Trigger Mode PSO/POD/Gate mode,
and TTL trigger
PSO/POD/Gate mode,
and TTL trigger
PSO/POD/Gate mode,
and TTL trigger
PSO/POD/Gate mode,
and TTL trigger
PSO/POD/Gate mode,
and TTL trigger
External Power
Control
0~5 V, linear control 0~5 V, linear control 0~5 V, linear control 0~5 V, linear control 0~5 V, linear control
Warm-up Time ≤15 min ≤15 min ≤15 min ≤15 min ≤15 min
Electrical
Requirements
AC 100~240 V/50~60 Hz AC 100~240 V/50~60 Hz AC 100~240 V/50~60 Hz AC 100~240 V/50~60 Hz AC 100~240 V/50~60 Hz
Environment Humidity <60% RH@25 ℃ <60% RH@25 ℃ <60% RH@25 ℃ <60% RH@25 ℃ <60% RH@25 ℃
Environment
Temperature
22~30   22~30   22~30   22~30   22~30
Cooling Water circulation cooling Water circulation cooling Water circulation cooling Water circulation cooling Water circulation cooling
