Pulse Duration <15ps
Average power 100W-500W
Pulse Energy 100μJ-200μJ
Wavelength 1064nm/532nm/355nm

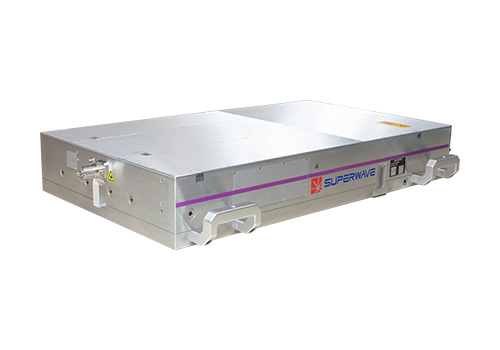

The Leonis series high-power femtosecond lasers offer outstanding performance advantages, designed to meet the demands of advanced scientific research and industrial applications. Firstly, the series covers three key wavelengths—1064 nm, 532 nm, and 355 nm—addressing a wide range of spectral requirements for various applications. Secondly, these lasers deliver high average power output of up to 500 W, combined with high repetition rates of up to 6 MHz, enabling efficient processing and high-speed scanning capabilities.
With ultra-short pulse durations of approximately 10 to 15 ps, the lasers ensure fine temporal resolution and machining precision, essential for precision applications. The lasers employ high-quality TEM₀₀ mode beams (M² ≤ 1.3) with beam circularity exceeding 90%, guaranteeing uniform and stable spots that enhance processing quality and experimental outcomes.
Burst mode operation supports complex processing needs, expanding the range of possible applications. The compact design, paired with water-cooling, ensures stable and reliable operation even at high power levels. Flexible trigger modes and linear external power control facilitate easy integration into existing systems and enable precise adjustment, providing users with a high level of control.
Overall, the Leonis series combines high power, high repetition rate, excellent beam quality, and stability, making it a highly competitive solution in the field of femtosecond lasers.
| Product Model | Leonis-1064-500 | Leonis-532-200 | Leonis-355-100 |
| Center Wavelength | 1064±0.5 nm | 532±0.5 nm | 355±0.5 nm |
| Power | 500 W@5 MHz | 200 W@1 MHz | 100 W@1 MHz |
| Repetition Rate | 1 Hz~6 MHz | 1 Hz~2 MHz | 1 Hz~2 MHz |
| Pulse Energy | 100 μJ | 200 μJ | 100 μJ |
| Power Stability | <1.0%(8 hours, RMS) | <1.5%(8 hours, RMS) | <2%(8 hours, RMS) |
| Pulse Duration | ~10 ps | ~15 ps | ~15 ps |

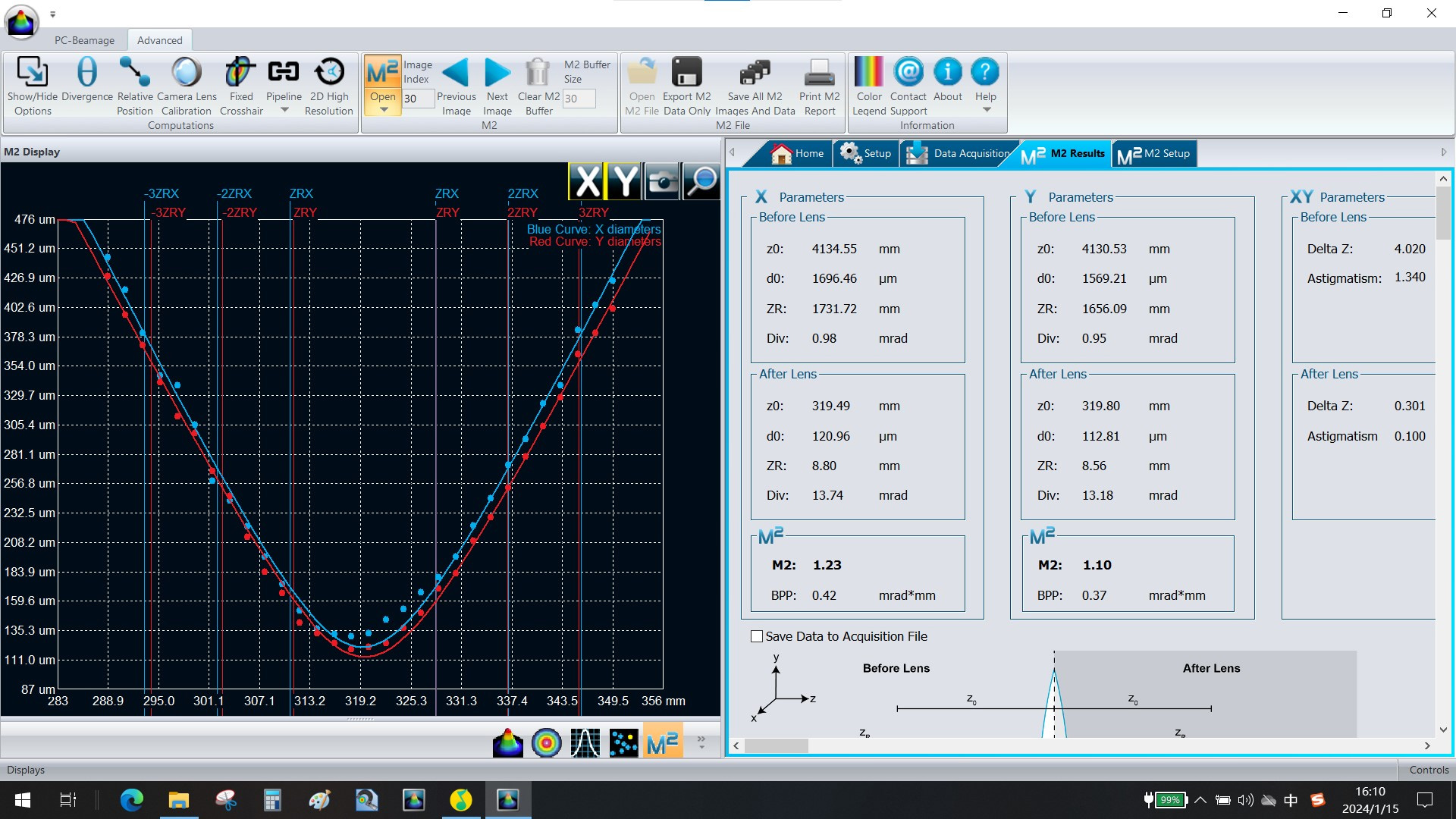

| Beam Quality | TEM₀₀， M²≤1.3 | TEM₀₀， M²≤1.3 | TEM₀₀， M²≤1.3 |

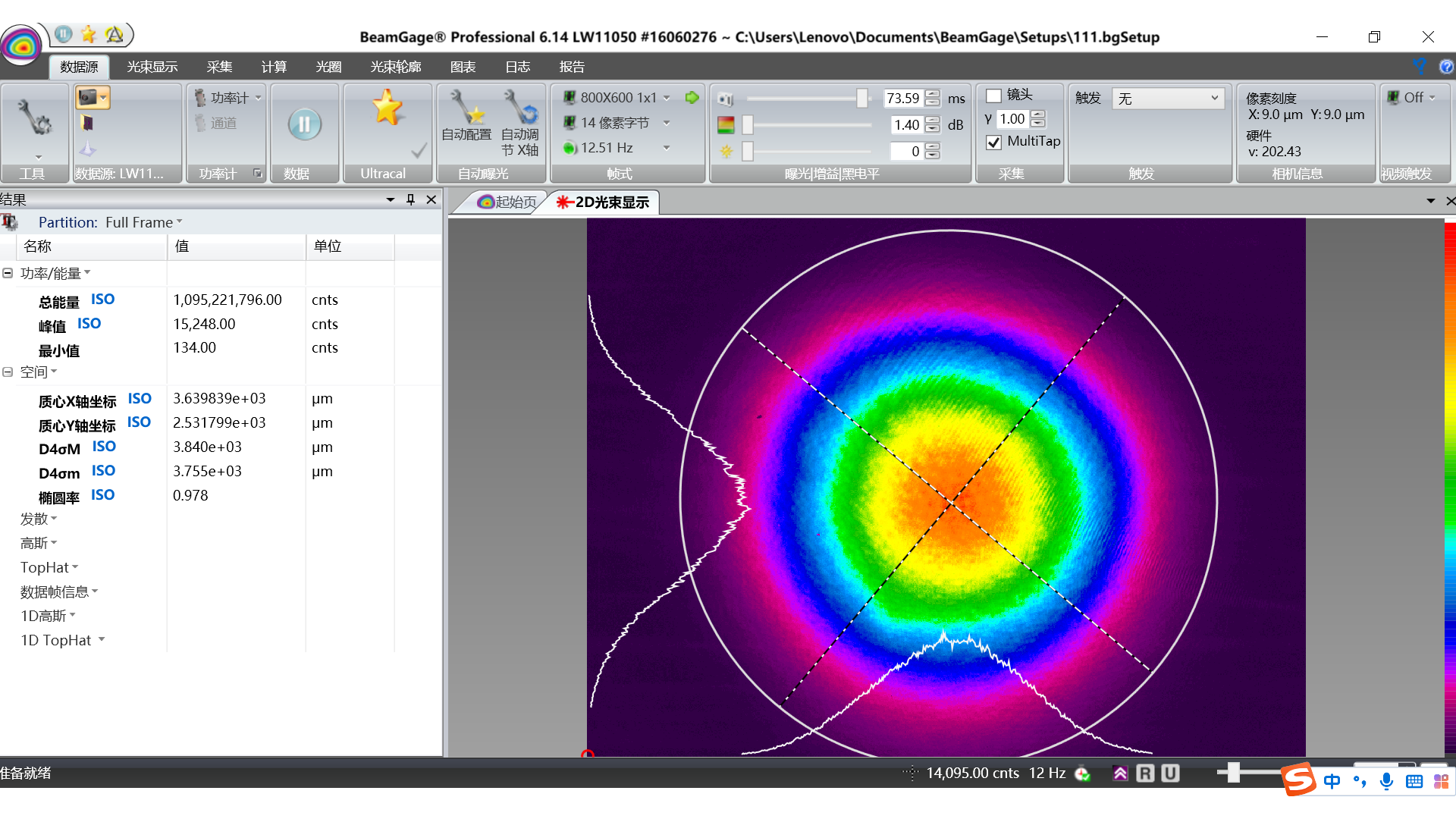

| Beam Circularity | >90% | >90% | >90% |
| Beam Diameter | 3.0±0.5 mm | 2.0±0.5 mm | 3.5±0.5 mm |
| Burst Mode | 1~10 | 1~3 | 1 |

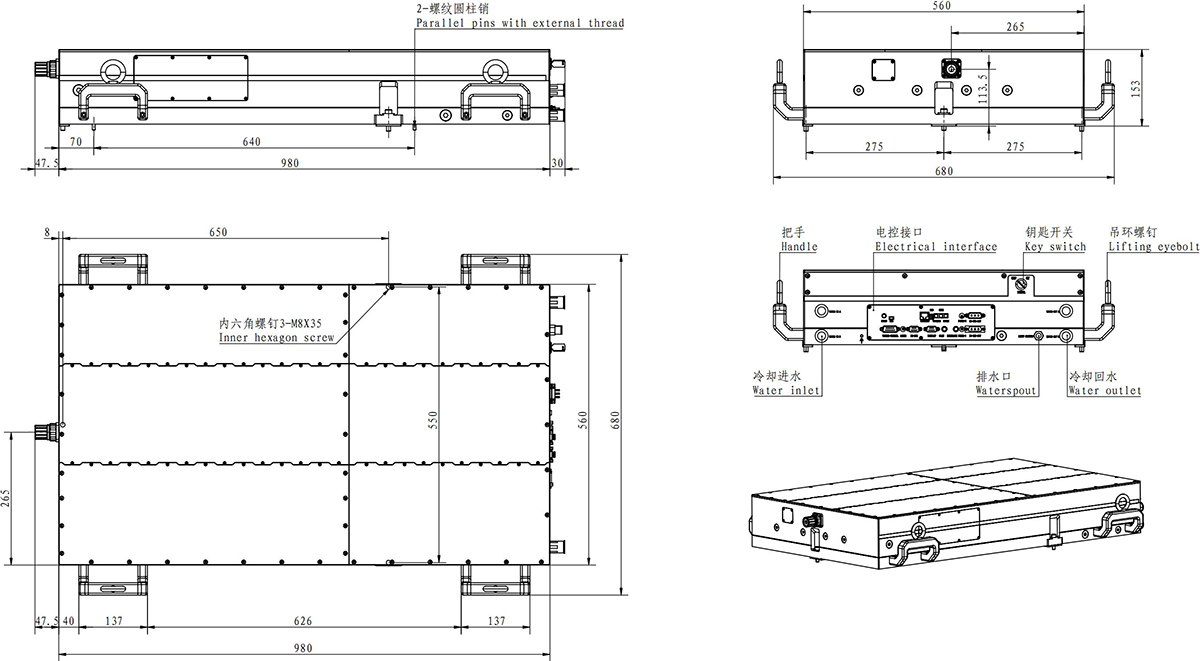

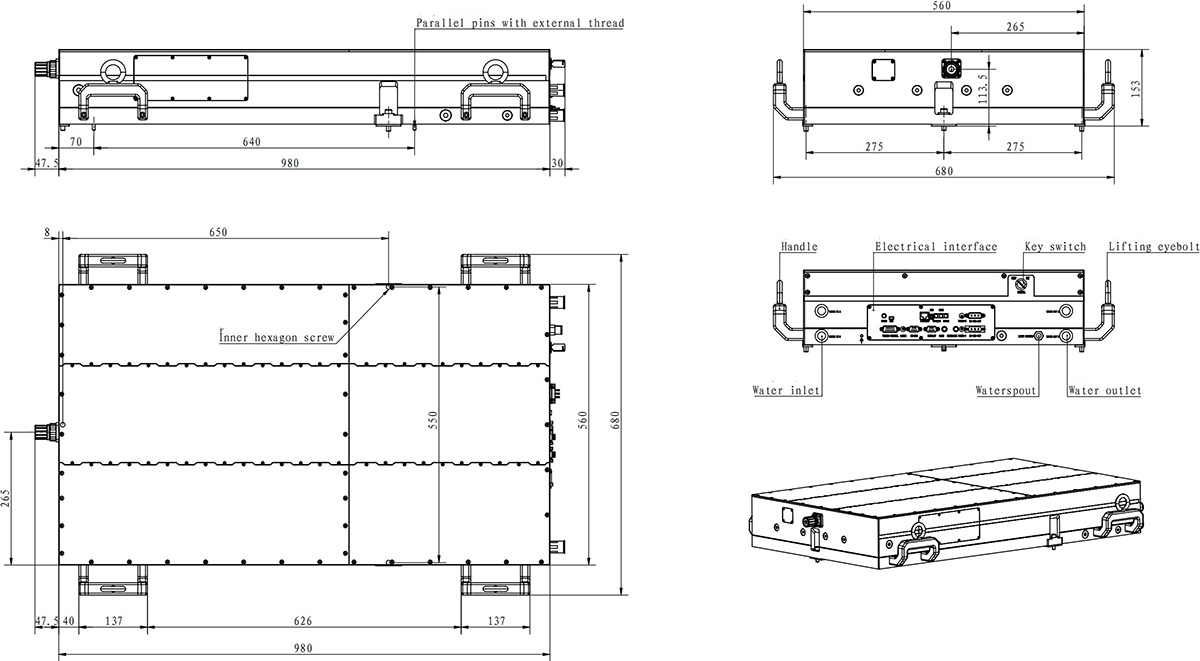

| Dimensions | 980*560*153 mm3 | 980*560*153 mm3 | 980*560*153 mm3 |
| Trigger Mode | PSO/POD/Gate mode, and TTL trigger | PSO/POD/Gate mode, and TTL trigger | PSO/POD/Gate mode, and TTL trigger |
| External Power Control | 0~5 V, linear control | 0~5 V, linear control | 0~5 V, linear control |
| Warm-up Time | 15 min | 15 min | 15 min |
| Electrical Requirements | AC 100~240 V/50~60 Hz | AC 100~240 V/50~60 Hz | AC 100~240 V/50~60 Hz |
| Environment Humidity | <60% RH@25 ℃ | <60% RH@25 ℃ | <60% RH@25 ℃ |
| Environment Temperature | 22~30 ℃ | 22~30 ℃ | 22~30 ℃ |
| Cooling | Water circulation cooling | Water circulation cooling | Water circulation cooling |
